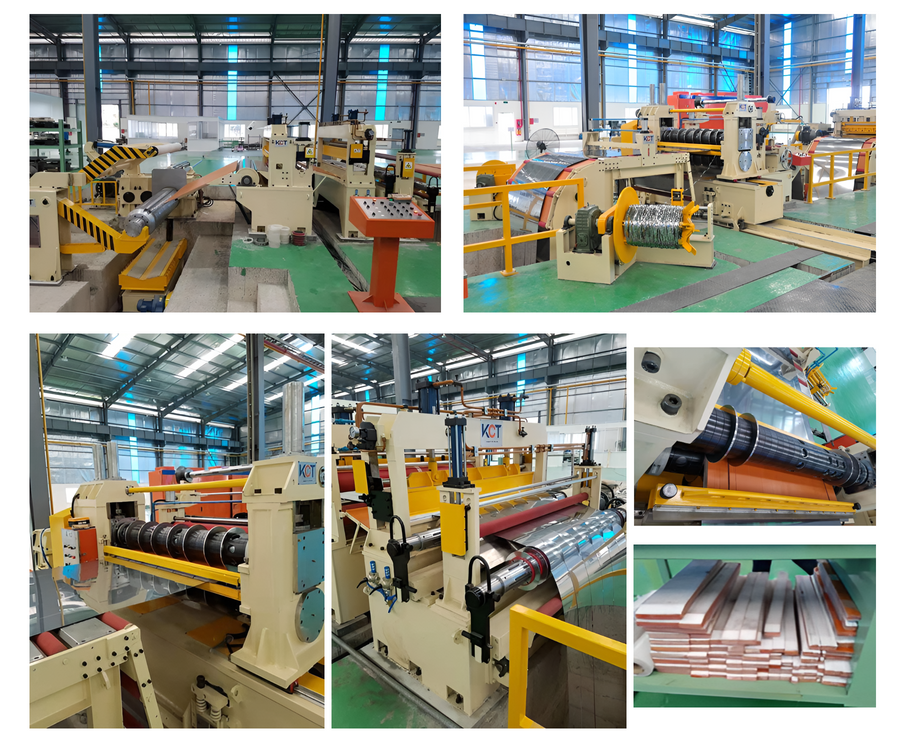

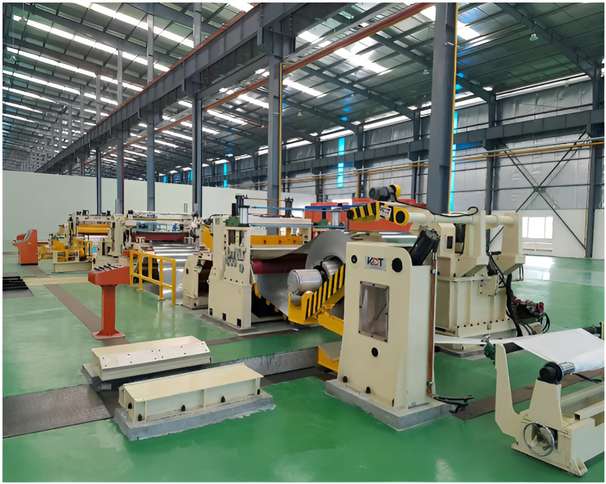

SLITTER LINE
MODEL : KCT FT-1600-2.0
| Model | FT-650 | FT-850 | FT-1100 | FT-1300 | FT-1600 | FT-1800 |
|---|---|---|---|---|---|---|
| Material thickness (mm) | 0.15~1.0 | 0.2~1.5 | 0.3~2.0 | 0.3~2.3 | 0.5~3.2 | 0.6~3.2 |
| Material width (mm) | 200-600 | 300-750 | 400-1050 | 500-1250 | 600-1500 | 700-1700 |
| Number of shear (Pcs) | 6~30 | 6~30 | 6~30 | 6~30 | 6~25 | 6~25 |
| Min width (mm) | 10 | 20 | 30 | 40 | 50 | 60 |
| Line speed (M/min) | 0~80 | 0~100 | 0~120 | 0~150 | 0~150 | 0~200 |
| Coil weight (T) | 5 | 8 | 10 | 12 | 15 | 20 |
| Coil I.D (mm) | ø508 | ø508 | ø508 | ø508 | ø508 | ø508~ø610 |
| Production Coil I.D. (mm) | ø300~ø508 | ø508 | ø508 | ø508 | ø508 | ø508~ø610 |
